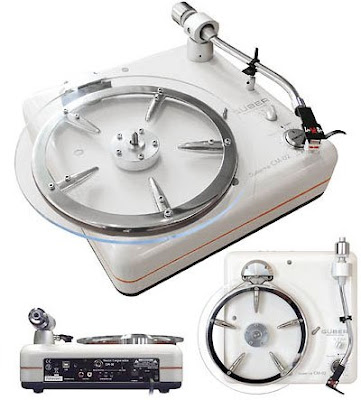

Vestax Guber CM-02 Belt Drive Turntable

For all you die hard analog purists, Vestax has a new belt drive turntable with a very nice retro styling, it has USB and line outputs and yes it has it's own headphone output as well. Check out the specs and the photos and visit the Vestax site: http://www.vestax.jp/products/guber/cm02.html The Guber turntable is not just an isolated product, it has a matching amplifier and a pair of speakers under the "Guber" name:More about the "Guber" System turntable:


TURNTABLE Motor DC Servo motor

Drive system Belt drive

Speed 33 1/3rpm,45rpm,78rpm

Pitch control +10%/-10%

Wow & Flutter 0.13%

S/N 60dB(ICE-B),70dB(DIN-B)

TONE ARM Type Static balance system

Effective length 230mm +-1mm

Offset angle 23

Over hang 15mm

Tracking error 2.35~ 1.3

Stylus pressure Adjustment range 0~7.0g

100mW+100mW max (at 32ohms load)

CARTRIDGE Model name VR-3S(Dual magnet)

Frequency response 15~20,000Hz

Sensitivity 3mV

Channel balance 2dB

Channel separation 20dB

Stylus pressure 2.5~3.5g

Tracking angle 23

Stylus for exchange VR-3SS

Weight 7.0g

OTHERS Dimensions 280(W)x138(H)x280(D)mm

Weight 4.7kg

Power AC 100V 50/60Hz

Power requirements 10VA
