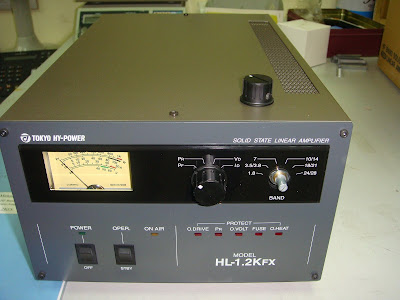

The HF Linear Amplifier of choice and operation currently with my Yaesu FT-2K is the Tokyo Hy-Power HL-1.2Kfx which is entirely solid state, has a small foot print, require no-tune, just plug and play.
This world-class compact amplifier is the easiest to handle and operate． Main PA section includes 4 high power MOS FET SD2933's．The amplifier's broadband characteristics require no further tuning once the operating band is selected．
This world-class compact amplifier is the easiest to handle and operate． Main PA section includes 4 high power MOS FET SD2933's．The amplifier's broadband characteristics require no further tuning once the operating band is selected．
| Frequency Range | 1.8 - 28MHz all amateur bands including WARC bands |
| Mode | SSB / CW / RTTY |
| AC Power | AC 100/110/115/120V, AC 200/220/230/240V |
| RF Drive Power | 85W typ. ( 75 - 95W max.) |
| Output Power | SSB 750W PEP max., CW 630W, RTTY 400W |
| Final Transistor | SD2933 x 4 ( MOS FET by ST micro ) |
| Circuit | Class AB parallel push-pull |
| Cooling Method | Forced Air Cooling |
| Multi - Meter | Output Power Pf 1kW, Reflected Power Pr 100W, Drain Voltage Vd 60V, Drain Current Id 50A |
| In/Out Connectors | SO - 239 ( Type M-J ) |
| Dimensions (W) x (H) x (D) | Approx. 232 x 142 x 350 mm Approx. 9.1 x 5.6 x 14.3 inches |
| Weight | Approx.15 kgs./ 33 lbs. |
| Optional Accessories | AC Power Cord x 1, RCA Plug x 2, Spare Fuse 8A ( for AC230V line ) x 2, Spare Fuse 15A ( for AC115V line ) x 2, Spare Fuse 1A x 2, Spare Fuse 2A x 1, User Manual x 1 |
